Software Overview

Learn all about the software that runs on Clustered-pi

24 December 2021 by Kevin McAleer

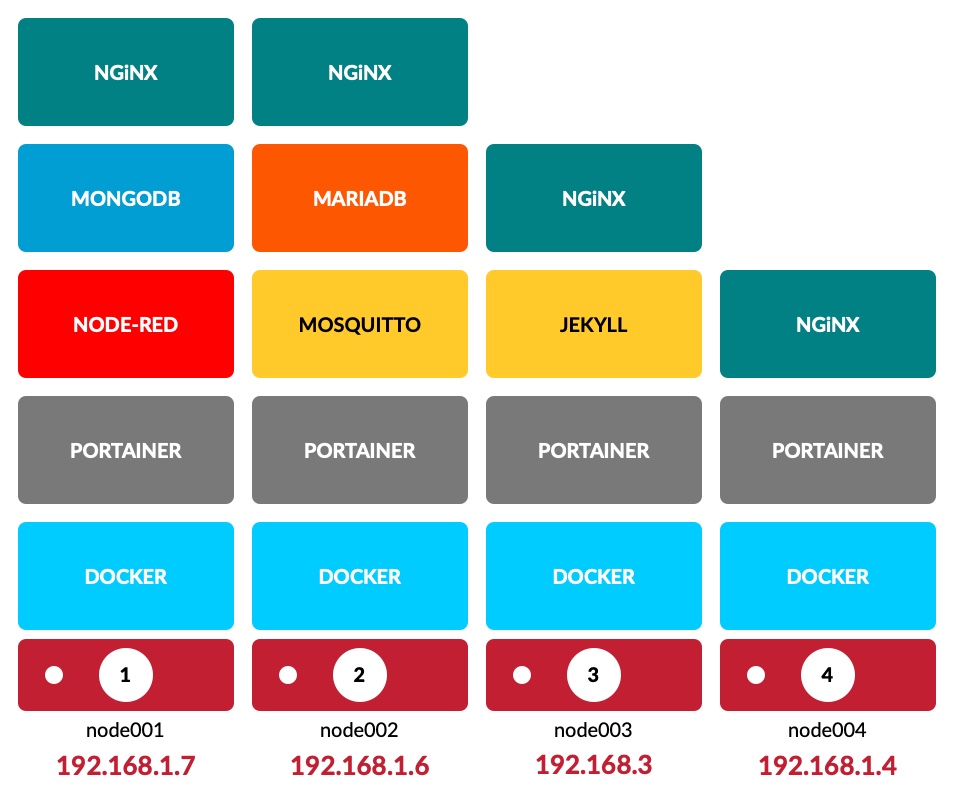

Layers

Operating System

The first layer of software is Raspberry Pi OS - all the cluster nodes run standard Raspberry Pi OS, which at the time of writing is the 32bit Bullseye release.

I use the Raspberry Pi Imaging software to write the Operating System to the SD card.


Ansible

Next, I’ve written a bunch of Ansible Playbooks to automate the installation of software on to the group of Raspberry Pis.

You provide Ansible with an inventory.ini file that contains a list of each of the nodes and the roles they have.

Here is my inventory file:

[master]
192.168.1.10

[node]
192.168.1.3
192.168.1.4
192.168.1.6
192.168.1.7

[nodered]
192.168.1.3

[grafana]
192.168.1.10
192.168.1.3

[mongodb]
192.168.1.10

[web]
192.168.1.3
192.168.1.4
192.168.1.6


[k3s_cluster:children]
master
node

[node01]
192.168.1.7

[node02]
192.168.1.6

[node03]
192.168.1.3

[node04]
192.168.1.4

As you can see from the file above, each of the servers are grouped into a number of roles. These roles can be used in the Ansible playbooks to install software, or set configuration in a standard, repeatable way.

Ansible is idempotent, meaning that if you run a script to change settings, running the same script again shouldn’t make any additional changes, unless the settings were somehow changed.

Playbooks

Here is an example Ansible-playbook:

---
- name: Apt Update
  hosts: all
  tasks:
     - name: Apt Update
       command: "sudo apt update"
     - name: Apt Upgrade
       command: "sudo apt upgrade -y"

This simple script will connect to all the nodes, run the sudo apt update command and then the sudo apt upgrade -y to install any updates automatically.


Docker

The next layer of software is Docker, which enables the nodes to run software containers. A Container is a discrete package of software that contains all the dependencies and libraries that are needed, which guarantees that the software will work. A container is an instance of a software image and the software images are available via https://hub.docker.com.

Docker containers can be run very simply using a command such as:

docker run -itd getting-started

Check out the article on Docker

Docker-Compose

More complex container configurations can be built using Docker-Compose with the help of a docker-compose.yml file. In fact, you can build multi-stage containers - this is how this website is built:

FROM alpine:latest AS getfiles
# install git
RUN apk --no-cache add git
RUN mkdir /src
WORKDIR /src
RUN git clone https://www.github.com/kevinmcaleer/ClusteredPi

FROM blafy/jekyll as jekyll
COPY --from=getfiles /src/ClusteredPi/web /src
WORKDIR /src
RUN mkdir -p /src/_site
RUN jekyll build

FROM nginx
COPY --from=getfiles /src/ClusteredPi/stacks/jekyll/nginx.conf /etc/nginx/nginx.conf
COPY --from=jekyll /src/_site /www/data
RUN chown -R nginx:nginx /www/data
RUN chmod -R 755 /www/data/*

We’ll cover how to use docker-compose files in a later article.


Portainer

I’ve chosen to use Portainer as a graphical user interface for managing Docker on each node.
